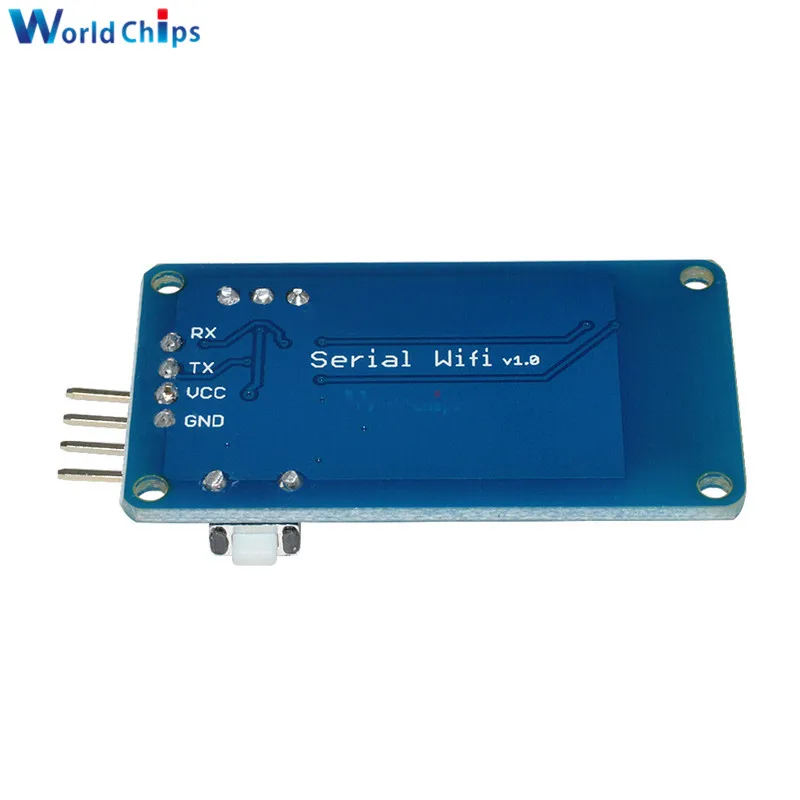

ESP07 WiFi Module 어댑터 일체형

3,003

카테고리:

설명

Description:
This is WiFi serial transceiver module, based on ESP8266 SoC.The SOC has Integrated TCP/IP protocol stack.It is TTL serial communication interface and its parameters can be set by AT command. It is widely used in networking, smart home project when it is connected to the wifi router. It can be used for remote monitoring of home appliances, bedroom temperature and humidity, controlling home appliances and smart car by the mobile phone.
Features:
For Arduino UNO R3 and the compatible board can directly connect to this module.
Interface logic voltage: 3.3V / 5V compatible(On-board level shift circuit)
Working voltage: 4.5V – 5.5V (On-board 3.3v LDO Regulator)
Working current: 240mA(MAX)
Serial port baud rate: 115200 (default), can be modified to other values by AT command
Serial communication format: 8N1
On-board reset button
On-board switch to select UART mode or firmware update mode
Antenna Type: Built-in ceramic antenna is available, and you can also use an external antenna.
Wireless Network Mode: station / softAP / SoftAP + station
Wireless criteria: 802.11 b / g / n
WIFI @ 2.4 GHz, support for WPA / WPA2 security mode
It is very easy to design projects by AT command
Applications: Home automation, sensor networks, industrial wireless control, smart car.
Package Included:
1 x Serial Wifi module
HTB1el5CdlfM8KJjSZFOq6xr5XXat
